MARLEY CP

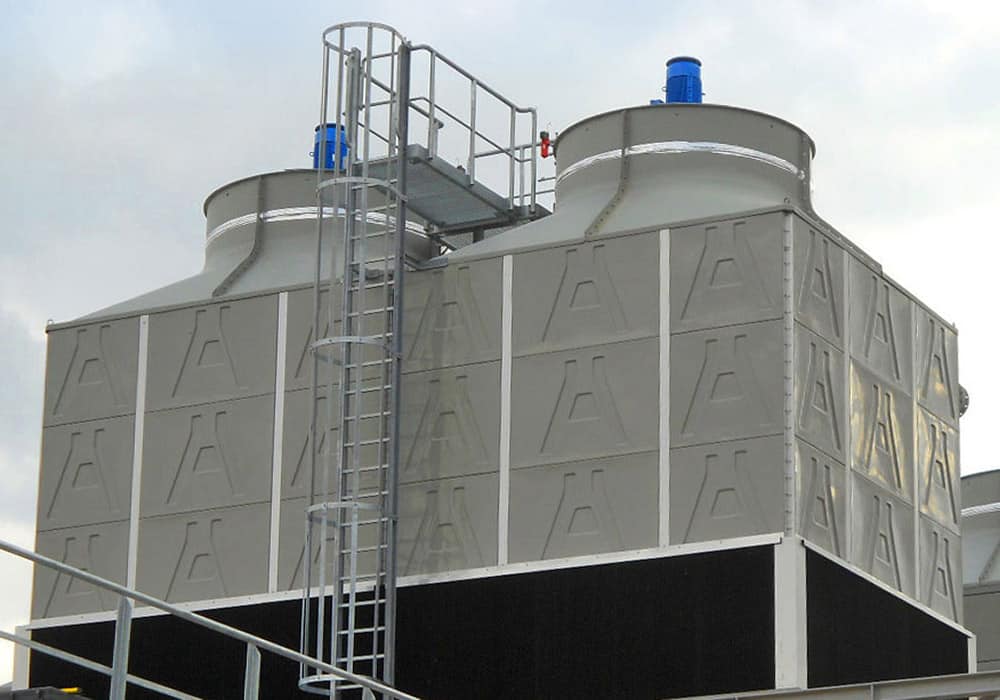

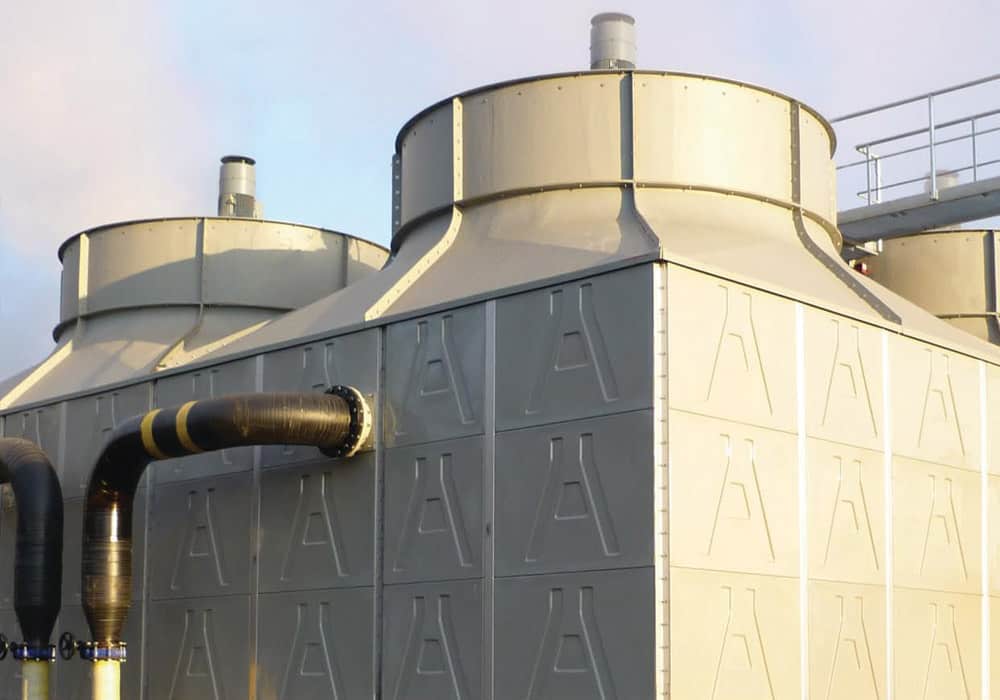

The Marley CP Cooling Tower is an induced-draft, counterflow tower uniquely designed for space- and sound-sensitive applications. It features a stainless steel internal structure and fiberglass reinforced polyester (FRP) casing to resist corrosion and chemical attack.A range of heat transfer fill media accommodates clean-to-very dirty water applications. The Marley CP Cooling Tower can be fully factory assembled, partially assembled, or shipped fully knock-down for on-site assembly.
Request Info

Details

“Fiberglass reinforced polyester (FRP) Collection Basin: Includes bottom or side suction outlet, HDG basin support and outlet flange.
Electric basin heater: Immersion heater helps prevent freezing during cold weather.

Electric oil level switch: Monitors geared motor oil supply.

External lube line: Facilitates oil changes.

Maintenance platform: Stable HDG steel work surface provides safe access to mechanical equipment.

Vibration switch: Automatically shuts down motor to help protect against mechanical failure due to high vibration level.

Ultra quiet fan: Maximizes efficiency while reducing sound levels.”

Features

“CTI and Eurovent Certified
The thermal performance of the Marley CP Cooling Tower is tested and certified by the Cooling Technology Institute (CTI) and Eurovent.

Mode of Operation
Hot water flows into the cooling tower through PVC (polyvinyl chloride) or polypropylene piping to the water distribution system. Spray nozzles uniformly distribute fine droplets of hot water from above the heat transfer fill. The cooling air is provided by an induced-draft axial fan. Air absorbs the heat from the water by evaporation and convection.

Heat Transfer Fill Media
Clean water applications utilize PVC or polypropylene film fill packs. Dirty water containing higher suspended solids content requires clog-resistant or splash fill.

Mechanical Equipment
The fan is mounted directly on the geared motor shaft. Fan blade pitch is adjustable to process conditions. The low-noise cooling tower duty motor is engineered to withstand high heat and moisture conditions and suitable for continuous operation with a variable frequency drive (VFD). Motor and fan are mounted on a hot dip galvanized (HDG) steel (or optional stainless steel) support structure.

Multiple Cells Configuration

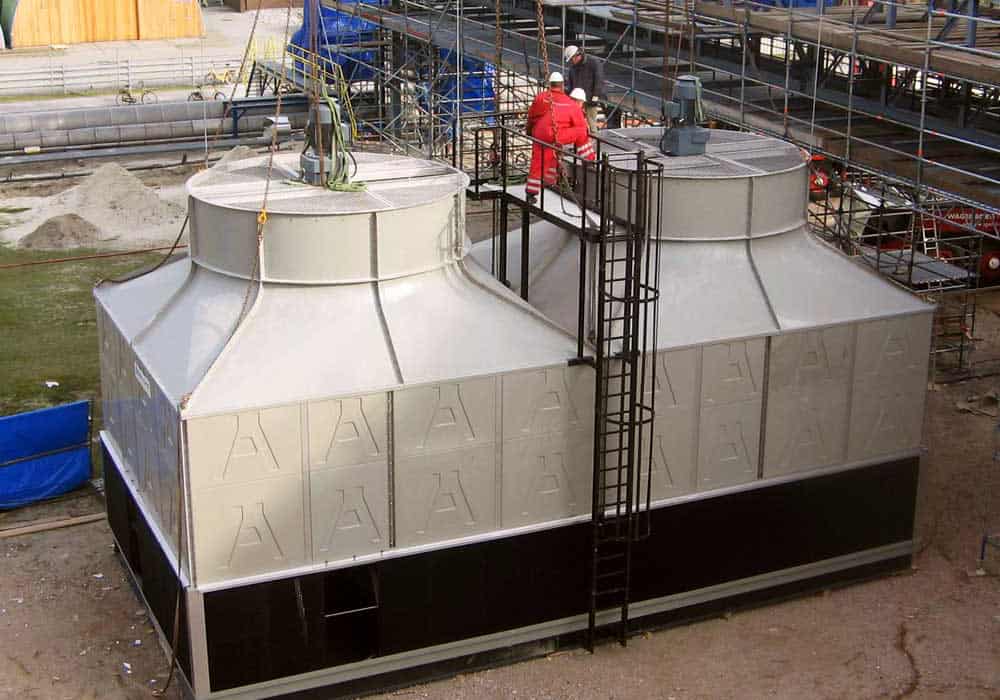

Multi-cell CP Cooling Towers can be installed inline or back-to-back.”
